Data Management Class Notes for 04/04/2014

Logical Database Design

• How good are our tables ?

  • Can they store all the information we want ?

  • Can they store all the constraints ?

  • Are there anomalies ?

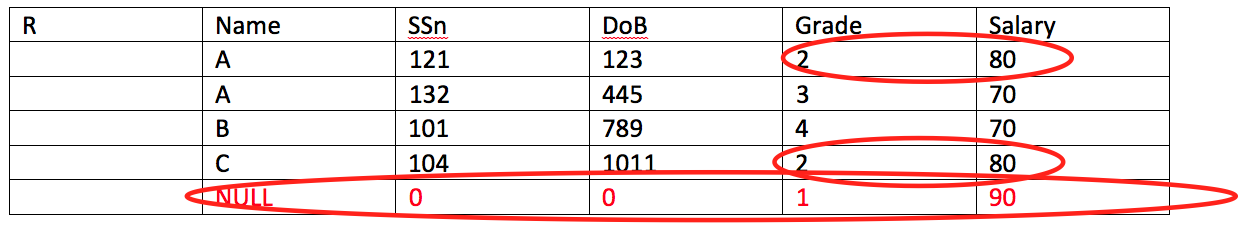

  Example 1:


• Problems:

  • 1) Redundant information.

  • 2) Cannot capture the constraints appropriately: e.g. A grade of 1 would result in a salary of 90 but there's no person with a grade of one, so how do we store this information ? (dependency between salary can be assumed as given)

    • a- Make up a fake person ??

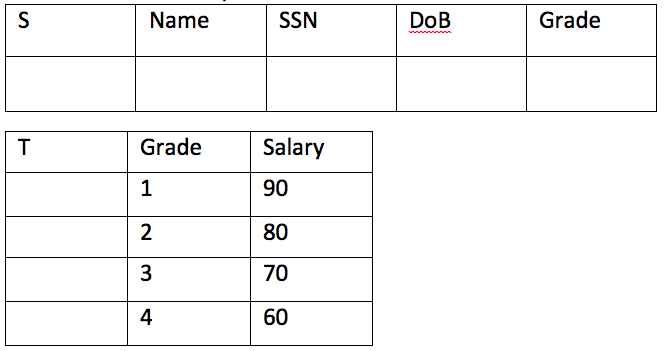

  • Possible solution to problem 2: Store information into different tables:



    Splitting tables into multiple ones: Decomposition

  • Done via a natural join: R = S T
    Create table R as
    Select distinct Name, SSN, DoB, Grade, Salaray
    From S,T
    Where s.grade = t.grade
    Lossless join decomposition (lossless in the sense that we didn’t loose any information)will decompose R into S and T

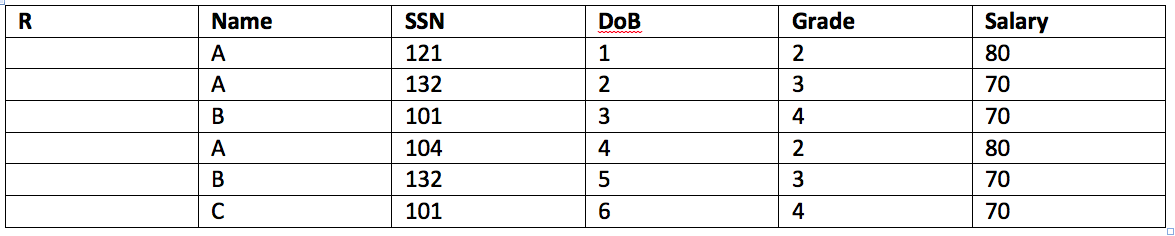

    • This Does not always work



  • Any two rows that have the same grade should have the same salary.

    Decomposition is one way of normalizing a database.

    Definition Normalization: Reorganizing a database to remove anomalies (“to put it into a normal form”)

    There exist several normal forms:
    1st normal form
    2nd normal form
    3rd normal form (most common one)
    4th normal form
    3rd BC

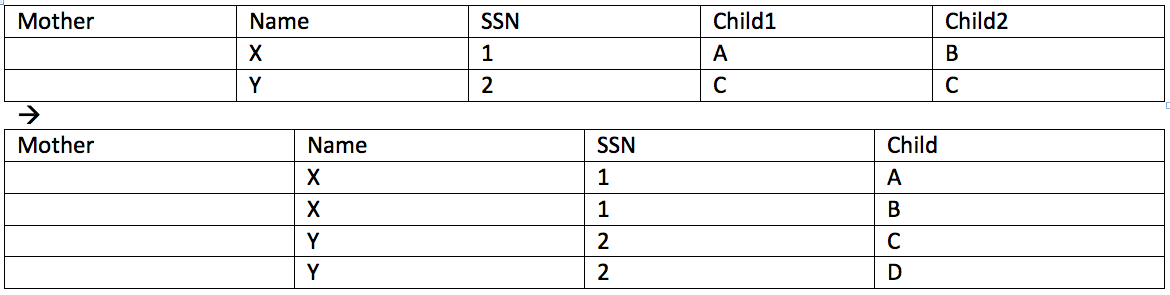

  1st normal form → fixed number of columns



  Functional Dependencies:
  P,Q
  If P functionally determines Q
  P → Q

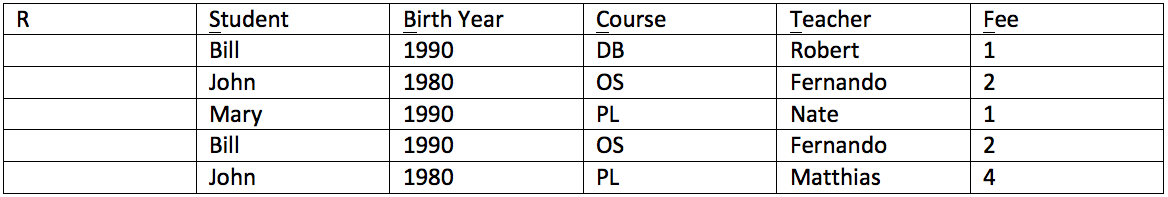

  Business Rules (functional dependencies):

  • 1. Students can have only 1 birth year
    S→B
  • 2. 1 teacher must charge the same fee to every student
    T→F
  • 3. A teacher can teach only one course
    T→C
  • 4. A student can take any specific course from one teacher only
    S,C→T

  Given these dependencies, we should be able to find out what should be the primary key. S, T are a possible primary key of the table.


  BF → BF
  ST → STBFC → ST are a possible primary key
  SC → SCTFB → SC are a possible primary key

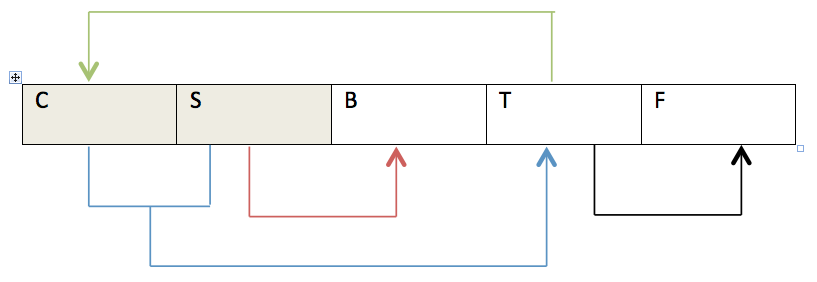

  Partial Dependency: From part of the PK to not in the PK (S→B)
  Transitive Dependency: From a column not in PK to a column not in the PK (T→F)
  Into Key Dependency: From not in PK to a column in PK (T→C)
  From the Kull Key Dependency: CS→T

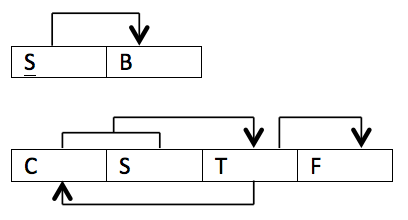

  We could split like this



  Like this we got rid of one of our anomalies.

  Next split:



  And we got rid of the second anomality

  1st normal form means:
  No partial dependencies

  2nd normal form means:
  No transitive dependencies.

  Next split



  Now all anomalies are removed

  If two tables have the same primary key, we can combine them:



  1st normal form and all dependencies are from FULL KEY.
  Boyce-Codd Normal Form (BCNF)
